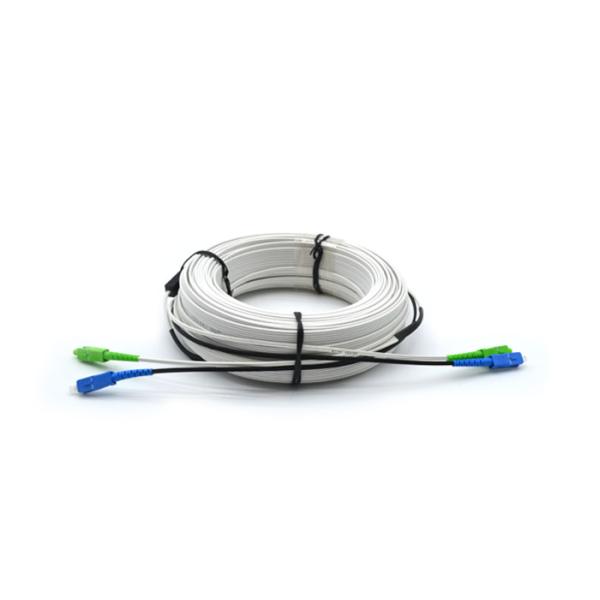

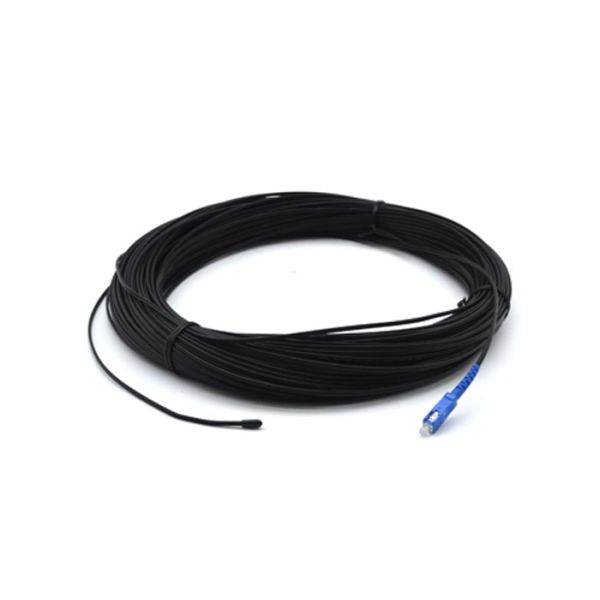

Indoor GJXFH Fig -8 Fiber Optic Drop Cable LSZH Jacket Simple Structure

Brand Name : CFO
Model Number : GJXFH drop cable
Certification : Rohs
Place of Origin : China
MOQ : 1km
Payment Terms : T/T, Western Union, MoneyGram, Paypal
Supply Ability : 10Km/day
Delivery Time : 3-5days for samples, 7-15days for bulk order
Packaging Details : 2km/roll
Material of Jacket : UV and Flame resistant LSZH
Certificate : CE ROHS CCC ISO9001
Function : Ftth indoor cable
Fiber counts : 1-4
Fiber type : G652D G657 A1 G657A2 G657 B3
Contact Now

Indoor GJXFH Fig -8 Fiber Optic Drop Cable LSZH Jacket Simple Structure


FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3 or OM4 multi-mode fiber, or other types of fiber.Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), orother contracted material.Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.


Features


Good mechanical and environmental characteristics.
Rame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant standards.
Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Meet various requirements of market and clients.


Applications


Used as access building cable.
Used in indoor cabling, especially used for FTTH


Optical Characteristics
Fiber TypeAttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link lengthMin Bending Radius
Conditions1310/1550nm850/1300nm850/1300nm850nm850nm
UnitdB/kmdB/kmMHZ.kmMHZ.kmmmm
G652D0.36/0.2216
G657A10.36/0.2210
G657A20.36/0.227.5
50/1253.0/1.0≥500/50030
62.2/1253.0/1.0200/50030
OM33.0/1.0≥1500/500≥2000≥30030
OM43.0/1.0≥3500/500≥4700≥55030
B1-OM33.0/1.0≥1500/500≥2000≥3007.5
B1-OM43.0/1.0≥3500/500≥4700≥5507.5

Structure and Technical Specifications


Fiber Count

Cable Diameter

(mm)

Cable Weight

(kg/km)


Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)

Short TermLong TermShort TermLong Term
1-43.0*2.09.080/20040/1001000/2200500/1000

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

more information.

2.The cable core use the colored coating fiber of 250μm.

3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used

We produce and test cable compl with following standard


Mechanical Performance
Max Tension PerformanceIEC 60794–1-2-E
Max. Operation TensionIEC 60794–1-2-E1
Crush TestIEC 6079 –1-2-E3
Impact TestIEC 60794–1-2-E4
Repeated BendingIEC 60794–1-2-E6
Torsion TestIEC 60794–1-2-E7
Cable bendIEC 60794–1-2-E11A
Attenuation CoefficientITU-T G.652
Structural TestIEC-60793-1-20
Environmental Performance
Temperature CyclingIEC 60794–1-2-F1
Water PenetrationIEC 60794–1–2-F5B
Filing Compound FlowIEC 60794-1-E14
